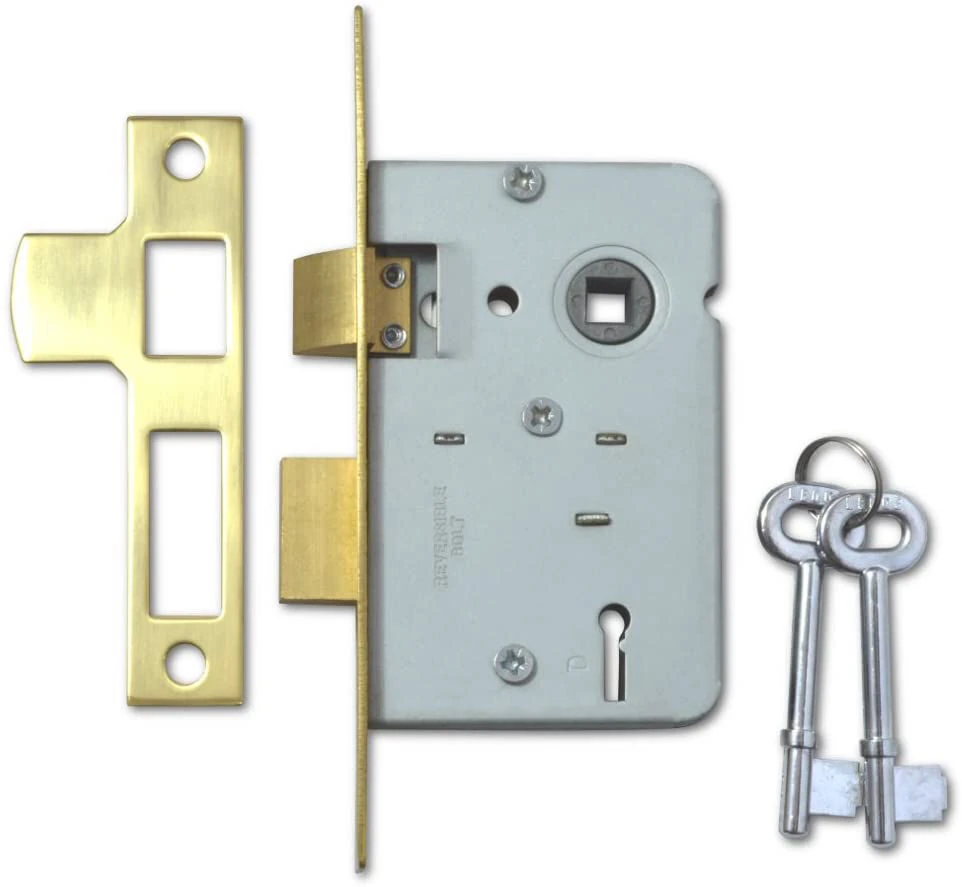

2 Lever Mortice Rebated Lock

Since these Electro Brass 64mm locks are only 2-lever, they’re not designed for use on entry/exit doors or anywhere you want high security.

What is great about this lock is that it’s been designed to accept bolt-through fixings, so if you have decent bolt-through handles that fix to each other through the door, rather than fastening onto the door itself, the lock case on this does allow for this thanks to the holes drilled through the lock either side of the follower where the handle set’s spindle travels through the case.

Features:
13mm rebate
Two-way action suitable for lightweight knobs or sprung handles
Deadbolt locked or unlocked by key from either side
Latchbolt withdrawn by lever handle from either side
Keys suitable for doors up to 55mm thick when using 8mm thick furniture plates

Size:
Backset – 44mm, 57mm
Case Depth – 64mm, 75mm
Case Height – 102mm
Centres – 57mm
Forend Length – 152mm
Forend Width – 22mm
